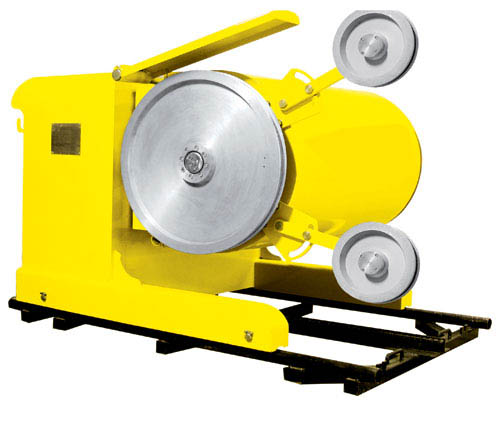

Wire Sawing Machine for Quarrying
Advantages
(1) Designed and manufactured elaborately machine with the most advanced technology. It is applicable for quarrying all kinds of granite and marble.
(2) Easily regulate the position and angle of driving flywheel by motors.
(3) Apply imported vector inverter with invariable torque. Feeding speed can be regulated automatically and smoothly as cutting force changes.
(4) Display the real-time parameters such as the main motor current, flywheel speed, etc.
(5) The machine can be operated manually or automatically.
Technical Parameters
Model | WS30B | WS37B | WS45B |
Man motor | 30 kW | 37 kW | 45 kW |
Flyeheel' s diameter | Marble Φ800 mm,Granite Φ600 mm | ||
Guide pulley' s diameter | 2×Φ380 mm | ||
Wire speed | 0~40 m/s | ||
Walking motor | 0.75 KW | ||
Walking speed | 0~30 m/h | ||
Adjustment distance | 450 mm | ||
Rotation angle | 360°电动 | ||
Max.wire length | 50 m | 60 m | 80 m |
Net weight | ~1900 kg | ~1950 kg | ~2030 kg |
