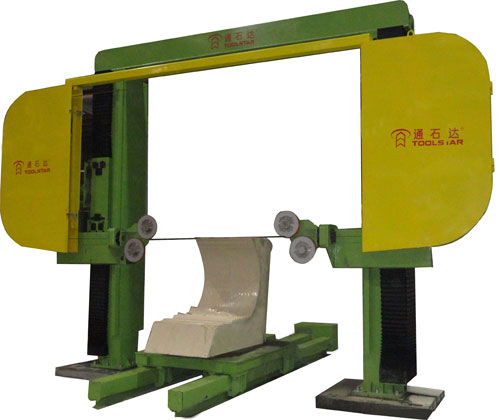

Wire Sawing Machine for Profiling
Advantages
1.The main motor is powered by inverter to obtain the suitable wire speed according to the type of granite or marble.
2.The feeding movements are controlled by servo motors and NC system to cut various circular plates, columns and English letters.
3.Hydraulic tensioning system is applied to obtain stable tension for wire saw.
4.Advanced man-machine interface and easy operation.
5.All kinds of protection devices guarantee the safety and reliability of the machine.
Technical Parameters
Model | PWS2000 | PWS3000 |
Max.bolck to be cut (W H) | 2000×1700 mm | 3000×2100 mm |
Main motor | 11 kW | 15 kW |
Wire length | 14.3 m | 17.1 m |
Wire speed | 0~40 m/s | |
Vertical stroke | 1900 mm | 2300 mm |
Horizontal staroke | 2400 mm | 3500 mm |
Water consumption | 30 L/min | |
Tensioning | Hydraulic | |
Max.tensioning force | 8590 N | |
Flywheel' s diameter | 4×Φ800 mm | |
Guide pulley' s doa,eter | 4×Φ300 mm | |
Troller dimension (L W) | 1600×1200 mm | 2500×2000 mm |
Dimensions (L W H) | 4538×5978×4610 mm | 6538×6978×5090 mm |
Net weight | ~6000 kg | ~6900 kg |
