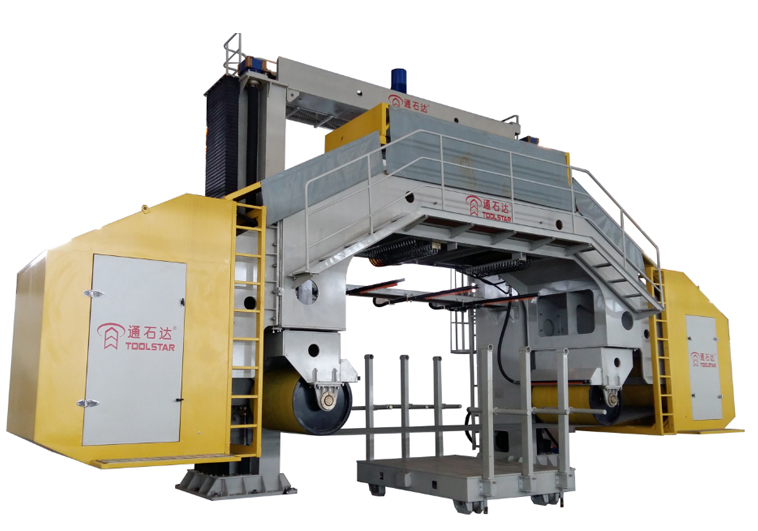

MWS Series of Multi - Wire Sawing Machine
Advantages
1.The main motor and feeding motor are powered by inverters to obtain the suitable wire speed and feeding speed according to the type of granite or marble.
2.Independent hydraulic tensioning system is applied to obtain the same tension for each wire. This will ensure that all wires can get the best cutting result.
3.Cylinders in each column will balance the weight of lifting device, and greatly decrease the lifting load on the screw.
4.Guide pulleys are used both on the top and bottom to keep the wire’s stability while running.
5.Pressure and position detectors are used to monitor each wire’s running after tensioning. The machine will stop automatically while any wire is broken.
6.Control system with Chinese and English interfaces displays the real-time parameters such as the main motor’s current, flywheel’s speed, tensioning, feeding speed, work time, etc.
Technical Parameters
Model | MWS5 | WMS10 | WMS20 | WMS32 | MWS40 | MWS60 |
Cutting area (W×H) | 4000×2100 mm | |||||
Slab thickness | 90/100/110 mm | 21/31 mm | ||||
Main motor | 45 kW | 55 kW | 110 kW | 132 kW | 160 kW | 250 kW |
Total power | 55 kW | 65 kW | 120 kW | 144 kW | 172 kW | 265 kW |
Wire length | 21.2 m | 23.8 m | 24.6 m | |||
Wire Nos, | 5 | 10 | 20 | 32 | 40 | 60 |
Wire speed | 0~35 m/s | |||||
Vertical speed | 0~30 cm/min | |||||
Horizontal speed | 0~70 cm/min | |||||
Trolley dimension (L×W) | 3000×2500 mm | |||||
Trplleu capacity |
80ton |
|||||
Tensioning mode | Independent hydraulic tensioning | |||||
Max.tensioning force | 1000~4000 N | |||||
Water consumpion (L/min) | 150 | 200 | 300 | 500 | 600 | 1000 |
Average cutting efficiency(㎡/h) | ~5 | ~9 | ~18 | ~29 | ~36 | ~54 |
Dimensions (L×W×H) | See layout drawings | |||||
Net weight | ~28 T | ~32 T | ~35 T | ~45 T | ~48 T | ~55 T |
